48V DIN Rail Industrial Power Supply 1.6A 75W 76.8W CE UL Certified AC/DC Input

Ask Lasest Price
Brand Name :	Olycom
Model Number :	IM-DAC220DC48V1.6A
Certification :	CE ISO9001 RoHS FCC
Price :	Negotiable
Payment Terms :	T/T, PayPal
Supply Ability :	2000Pcs per month
Delivery Time :	3~7 working days

Add to Cart

Product Details
Company Profile

48V DIN Rail Industrial Power Supply 1.6A 75W 76.8W CE UL Certified AC/DC Input

CE/UL Listed DC48V Din Rail Power Supply

Key Feature

Universal 90 - 264VAC or 120 - 370VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -30℃ to +70℃
High I/O isolation test voltage up to 4000VAC
Low ripple & noise
Output short circuit, over-current, over-voltage, over-temperature protection
DIN rail TS-35/7.5 or 15 mountable
Suitable for small chassis and narrow space installation

Specification

Input
Item	Operating Conditions	Min.	Typ.	Max.	Unit
Input Voltage Range	Rated input (Certified voltage)	100		240	VAC
	AC input	90		264	VAC
	DC input	120		370	VDC
Input Voltage Frequency		47		63	Hz
Input Current	115VAC			2	A
Input Current	230VAC			1
Inrush Current	115VAC(Cold Start)		25
Inrush Current	230VAC(Cold Start)		45
Power Factor	115VAC		0.98
Power Factor	230VAC		0.94
Leakage Current	240VAC	＜0.5mA
Hot Plug		Unavailable

Output
Item	Operating Conditions	Min.	Typ.	Max.	Unit
Output Voltage Accuracy	Full load range/48V		±1.0		%
Line Regulation	Rated load		±0.5
Load Regulation	0% - 100% load		±1.0
Ripple & Noise	20MHz bandwidth (peak-to-peak value)			150	mV
Temperature Coefficient			±0.03		%/℃
Minimum Load					%
Hold-up Time	115VAC	12			ms
Hold-up Time	230VAC	60			ms
Short Circuit Protection	Recovery time<3s after the short circuit disappear	Constant current, continuous, self-recovery
Over-current Protection	Normal temperature	105% - 150% Io constant current mode automatic recover after fault condition is removed
Over-current Protection	Low temperature high temperature	≥105%Io constant current mode automatic recover after fault condition is removed
Over-voltage Protection	48V	≤60V (Output voltage turn off, re-power on for recovery)
Over-temperature Protection		Output voltage turn off, re-power on for recover after the temperature drops

General
Item		Operating Conditions			Min.	Typ.	Max.	Unit
Isolation Test	Input	Electric strength test for 1min. leakage current <10mA			2000			VAC
	Input-Output				4000
	Output				500
Insulation Resistance	Input	At 500VDC			50			MΩ
	Input-Output				50
	Output				50
Operating Temperature					-30		+70	℃
Storage Temperature					-40		+85
Storage Humidity		Non-condensing			10		95	%RH
Operating Humidity					20		95
Switching Frequency						65		kHz
Power Derating		Operating temperature derating	-30℃ to -10℃		2.0			%/℃
			+45℃ to +70℃		2.0
		Input voltage derating		90VAC-100VAC	2.0			%/VAC
Safety Standard					IS13252 (Part1) safety approved & EN62368-1, BS EN 62368-1 (Report) Design refer to UL62368-1, UL61010-1
Safety Class					CLASS I
MTBF		MIL-HDBK-217F@25℃			≥300,000h

Introduction

IM-DAC220/DC48V1.6A converts AC220V to DC48V for industrial PoE switches featuring

cost-effective
energy efficient
standard DIN-rail mounting

With good EMC performance, immunity to noise and reliability, it could ensure stable and continuous operation of the automation system

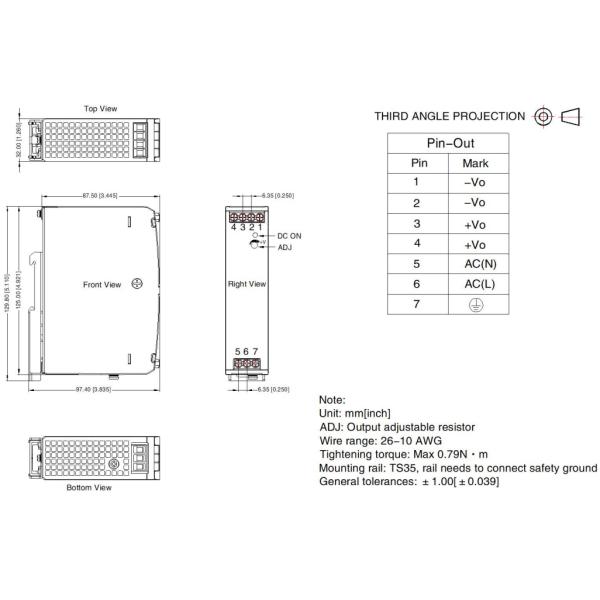

Mechanical Information

Case Material	Metal (AL1100, SGCC)
Dimension	32.00mm x 125.00mm x 87.50mm
Weight	350g(Typ.)
Cooling Method	Free air convection

Characteristic Curve

Note

1. With an AC input voltage between 90-100VAC and a DC input between 120-140VDC the output power must be derated as per the temperature derating curves

2. This product is suitable for applications using natural air cooling

Electromagnetic Compatibility
Emissions	CE	CISPR32/EN55032 CLASS B
	RE	CISPR32/EN55032 CLASS B
	Harmonic current	IEC/EN61000-3-2 CLASS A
Immunity	ESD	IEC/EN 61000-4-2 Contact ±6KV/Air ±8KV	perf. Criteria A
	RS	IEC/EN 61000-4-3 10V/m	perf. Criteria A
	EFT	IEC/EN 61000-4-4 ±2KV	perf. Criteria A
	Surge	IEC/EN 61000-4-5 line to line ±2KV/line to ground ±4KV	perf. Criteria A
	CS	IEC/EN61000-4-6 10 Vr.m.s	perf. Criteria A
	Voltage dips short interruptions and voltage variations immunity	IEC/EN61000-4-11 0%, 70%	perf. Criteria B

Ordering Options

IM-DAC220/DC12V1.67A	AC220V to DC12V1.67A, 20W, Din Rail Mounted, -30℃～70℃
IM-DAC220/DC24V1A	AC220V to DC24V1A, 24W, Din Rail Mounted, -30℃～70℃
IM-DAC220/DC48V1.6A	AC220V to DC48V1.6A, 76.8W, Din Rail Mounted, -30℃～70℃
IM-DAC220/DC48V2.5A	AC220V to DC48V2.5A, 120W, Din Rail Mounted, -40℃～70℃
IM-DAC220/DC48V5A	AC220V to DC48V5A, 240W, Din Rail Mounted, -40℃～70℃
IM-DAC220/DC48V10A	AC220V to DC48V10A, 480W, Din Rail Mounted, -40℃～70℃
