10/100m 2 Port Industrial Network Switch Ethernet
Unmanaged DIN rail Network poe switch With IP40 Level Protecion
Key Features of 2 port ethernet switch:
- Comply with IEEE802.3af/at
- Power on POE IP cameras through the Ethernet cable, simple
construction, power range up to 100 meters,

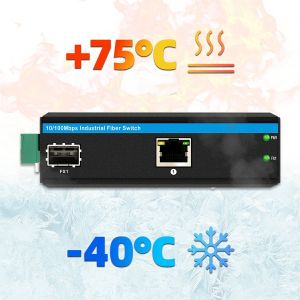

- Operating temperature-40 ℃ to + 75 ℃,
- Meet IP40 protection degree and EMC industrial grade requirements,
DIN rail installation,
- Pass through dangerous environmental certification and comply with
FCC and CE standards.
- Reliable industrial grade design could ensure continuous and stable
operation of the automation system.
Specification of industrial din-rail poe switch
| Product Name | 10/100Mbps Industrial POE Fiber Media Converter (1F+1TP) |
| Model No. | IM-PC111FE |
| Port | 1 x 100Mpbs SFP port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features | Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply | POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1) (802.3at standards required special instructions) |
| Environment | Working temperature:-40°～75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards | EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN
61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6
(CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Safety | CE Mark ,commercial CE/LVD EN60950 |
| Mechanical information | Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
| Warranty | 3 years |
Packing box of Din rail unmanaged switch:
- Put the product in an ESD Bag, then placed in PE foams with outer
carton packaging.
- The standard packing usually contains a main device, a warranty
card and a user manual.
- Packing box dimension for 1pc: 23*16.5*5.8cm
- 40pcs in a packing box of 67*33*47cm dimension.
FAQ:
1. What is the input voltage?
A: For PoE switches, it is DC48V~52V.
For non-PoE switches, it is DC12V~52V.
2. What is the power budget?
A: Each PoE port supports 15.4W/30W/60W output.
The default output is 30W(please let us know if you need 60W type)
The total budget: output watts of each port times PoE ports
3. Is it managed?
A: No, this series is unmanaged.
We have another managed series for your choice.
4. What installation method does it support?
A: It supports Din Rail and wall mounting.
If a special mounting kit is required, it is OK, we dealt with it
before.
5. Does the fiber port support 100M speed?
A: Yes, for 100M models, it just supports 100M modules.
For Gigabit models, the fiber port is 100M/1000M auto-adaptive, you
can insert 155Mb/s or 1.25Gb/s modules, both will work.
