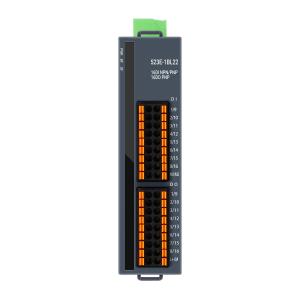

    Modbus TCP/IP Slave I/O Module 24VDC 2 RJ45 16 Port DI DO Din Rail NPN PNP Connection

    Ask Lasest Price
    Brand Name : Olycom
    Model Number : OM523S-1BL22-TCP
    Certification : CE RoHS FCC ISO9001
    Price : negotiable
    Payment Terms : T/T, PayPal
    Supply Ability : 2000pcs/month
    Delivery Time : 4~7 days
    • Product Details
    • Company Profile

    Modbus TCP/IP Slave I/O Module 24VDC 2 RJ45 16 Port DI DO Din Rail NPN PNP Connection

    Modbus TCP/IP Compact Standalone Module


    Key Features


    • 2 RJ45 interfaces, 100Mbit/s
    • Bus, power isolation technology, and reliability
    • Standalone as Modbus-TCP slave station
    • 24VDC power supply
    • 8-bit DIP switch to set the station ID address
    • Built-in 16DI (common cathode/common anode input)
    • 16DO (PNP output)
    • IP20, DN35 din-rail installation

    Product Specification


    Working Voltage24VDC (allowable voltage range 18VDC~28VDC)
    Operating Current LossBased on different product models, please refer to the product manual for details
    Power ProtectionAnti reverse connection protection, surge absorption
    Communication Interface2*RJ45
    Power Terminal TypePlugged connector, screw wiring connection port
    Signal Terminal TypePlugged connector, straight in PUSH-IN wiring port
    Display IndicationPower supply, NET green indicator light, SF red indicator light, IO signal green indicator light
    ProtocolModbus-TCP/IP,S7-TCP/IP
    Master-slave Categoriesstandalone slave devices
    Main IO PointsYes, please refer to the ordering data for details
    Overcurrent Protection Threshold1.5A,5ms
    IO Response TimeMin 2ms
    ScalabilityDo not support Extension
    Cable length (shielding)Maximum 500m
    Cable length (unshielded)The maximum length of the input point is 300m, and the maximum length of the output point is 150m

    Slave Station Settings
    IP SettingsSet by dial switch or webpage
    Maximum number of Stations per Segment255 (The specific number of supported stations is determined by the main station)

    Work Environment
    Working Temperature-20~60℃
    Working Humidity5%~90% (non-condensation)
    AltitudeBelow 2000 meters (80kPa)
    Protection GradeIP20
    Dimensions (L* W* H)27mm*94mm*114mm



    Ordering Details


    SpecificationsProduct No.
    OM523S standalone module, Modbus TCP/IP, S7-TCP/IP bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing setting Station IP address, the product comes with 16DI (common yin/common yang input), 16DO (PNP output), IP20 protection level, supports DN35 rail installation

    OM523S-1BL22-TCP

    OM523S standalone module, Modbus TCP/IP, S7-TCP/IP bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing setting Station IP address, the product comes with 16DI (common yin/common yang input), 16DO (NPN output), IP20 protection level, supports DN35 rail installation

    OM523S-1NL22-TCP


    FAQ


    Can I visit your factory?

    Sure. Each year there will be some important clients visiting us for new models and enhancing our business relationship.

    Please let us know if you have a plan.


    What is your payment term?

    For sample orders, full payment before production.

    For bulk orders, we could do 30% deposit and balance payment before we ship your order.

    The principle rule is full payment before shipment.


    Do you do reselling or distribution?

    Yes. Olycom has been in the telecommunication field for about 20 years and gained good reputation in domestic market.

    We are actively seeking overseas agents/reseller/distributors to promote our brand and products.

    Necessary technical and pricing support will be provided.
