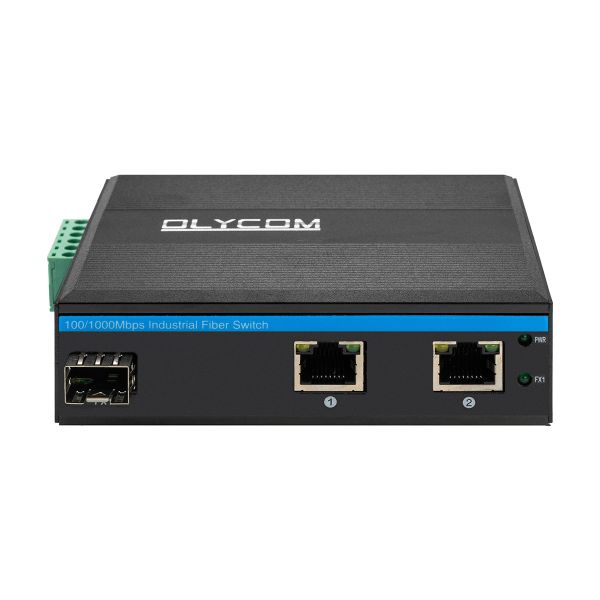

Mini Optical Fiber Converter Industrial Ethernet Switch Poe Switch
DC48V Input

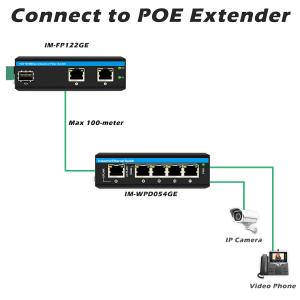

Key Features of mini optical media converter
- Support power on POE IP cameras through the wireless access point
(AP) of 5 categories of Ethernet cable.
- IEEE 802.3af/at power on to 1 ~ 2 RJ45 ports
- 2x 10/100/1000Mbps Auto-sensing RJ45 ports
- 1x 1000Mbps SFP fiber port
- 6 KV Ethernet surge protection, adapt to a harsh outdoor
environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard,
half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- Max power to15.4W under af standard, 30W under at standard to each
PoE port
- Detect the PoE models of electrical equipments.
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~75 ° c
Specification of Industrial Ethernet Switch
| Product Name | 10/100/1000Mbps Industrial POE Fiber Switch (1F+2TP) |
| Model No. | IM-FP122GE |
| Port | 1x 1000Mpbs SFP port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features | Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply | POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~2) (802.3at standards required special instructions) |
| Environment | Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards | EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN
61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6
(CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Safety | CE Mark ,commercial CE/LVD EN60950 |
| Mechanical information | Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
| Warranty | Replacement within 1 year; 5 years repairing |
