Olycom Hardened 2.5G Layer 2 Managed PoE Fiber Optic Switch
Key Feature of 2.5G Fiber Switch
- Support power on PoE IP cameras through the wireless access point
(AP) of 5 categories of Ethernet cable
- IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
- 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 8 x 100/1000/2500Mbps SFP fiber port

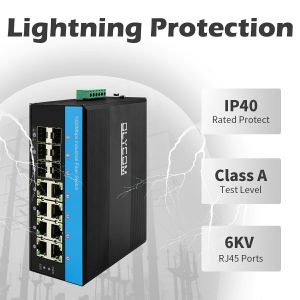

- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Meet IP40 protection degree and EMC industrial grade requirements
- DIN rail or Wall installation
- Power range up to 100 meters
- Comply with FCC and CE standards
- Operating environment temperature: -40°C～75°C
It is an ideal solution for IP Surveillance, wind, electricity,
subway PIS, assembly automation, power SCADA, sewage treatment,
metallurgy, intelligent transportation, rail transportation,
military and other industries
Technical Data of Managed Network Switch
| Product Name | 10/100/1000Mbps Managed Industrial PoE Fiber Switch(6F+8TP) |
| Model No. | IM-FP688GW |
| Port | 6*100/1000/2500Mpbs SFP ports SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 8*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Protocol | IEEE 802.3 IEEE802.3U IEEE802.3ab IEEE802.3z IEEE802.1d STP IEEE802.1w RSTP IEEE802.1s MSTP ITU-T G.8023 EPR/Y.1344 IEEE802.1Q IEEE802.1X IEEE802.3ad IEEE802.3x IEEE802.1ad IEEE802.1p IEEE802.1ab IEEE802.3az IEEE802.3af IEEE802.3at |
| Switching Features | Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 46Gbps(non-traffic jam) DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb VLAND ID: 4096 MAC Address Table Size: 8K Jumbo Frame: 9.6KB |
| Network Media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs | Power, System, network, fiber PWR: Power
Sys: System status
Orange: Link/ACT Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: indicators below SFP ports |
| Power Supply | Input voltage: 48V(max 52V) PoE output voltage: 48V Single PoE output power: 30W(port 1~8) Max budget: 240W Reverse connection: support |
| PoE Wiring | PoE af/at: 1/2(V+), 3/6(V-) |
| Environment | Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Industry Standards | ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV |
| Certification | CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014 |
| Mechanical information | Shell: Corrugated metal shell, IP40 grade level Dimension: 158*115*60mm Mounting method: Din-rail/Wall mounting Weight: 0.75Kg/0.9Kg(Net/Gross) |
| Warranty | 3 years, lifetime technical support |
Managed Functions of L2 Managed Switch
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE(Energy Efficient Ethernet) Management,
optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support QoS, transport classification QoS, CoS, bandwidth
control(input/output direction), storm suppression, differentiated
services
- Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN,
Protocol VLAN, VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link
aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating,
IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,
HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy
prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option
82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP,
IEEE802.1ab LLDP
- Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,
TFTP, QoS, ACL
Package And Delivery of 8 Port PoE Switch
- 1pc switch
- 1pc user manual
- 1pc console cable
Remark
Accessories(DIN rail bracket, optical module, power supply,
patchcord, network cable etc.)are NOT included in the packing box,
please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 15.8*11.5*6cm
Inner box size: 25.3*20.8*8cm
Product weight: 0.75Kg
Packing weight: 0.9Kg
Master box size: 55.5*40*41cm
Packing quantity: 20Pcs
Packing weight: 20Kg
Lead Time
| Quantity(Pieces) | 1-30 | >30 |
| Time(days) | 5 | Negotiable |
Our Advantages
- Fast dispatch, it usually takes 2~4 working days to get the order
ready.
- Easy to customize: we support printing your logo/model name on the
device even if it is an order for several pieces.
- We cater to many minor requirements to fulfill your needs.
FAQ
1, What chip is it based?
Olycom: Vitesse
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and
product parts(mounting kit, power terminal block etc.)
3, Can I connect it with 10/100M devices?
Olycom: Yes
For LAN ports, they are 10/100/1000M auto-sensing
For Fiber ports, please configure 100Mbps speed via Web GUI or CLI
4, Can I shut down PoE function for some ports when necessary?
A: Yes
All the PoE managed switches in this series support PoE management
Please just set PoE status via Web GUI or CLI
5, Do you do SKD/CKD?
A: Yes
As a factory, we have dealt with this many times.
