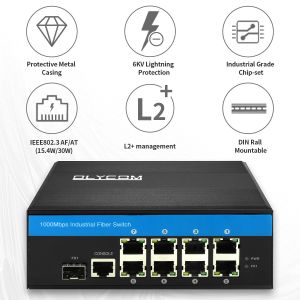

Olycom 8-Port Gigabit PoE/PoE+ DIN Managed Switch
Key Features of Manageable PoE Switch
- Support power on PoE IP cameras through the wireless access point
(AP) of 5 categories of Ethernet cable.
- IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
- 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 1 x 100/1000/2500Mbps SFP fiber port
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Meet IP40 protection degree and EMC industrial grade requirements
- DIN rail or Wall installations
- Power range up to 100 meters
- Comply with FCC and CE standards
- Operating environment temperature: -40°C～75°C
Specification of Industrial Fiber Switch
| Product Name | 10/100/1000Mbps Managed Industrial PoE Fiber Switch(1F+8TP) |
| Model No. | IM-FP188GW |
| Port | 1*100/1000/2500Mpbs SFP ports SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 8*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Protocol | IEEE 802.3 IEEE802.3U IEEE802.3ab IEEE802.3z IEEE802.1d STP IEEE802.1w RSTP IEEE802.1s MSTP ITU-T G.8023 EPR/Y.1344 IEEE802.1Q IEEE802.1X IEEE802.3ad IEEE802.3x IEEE802.1ad IEEE802.1p IEEE802.1ab IEEE802.3az IEEE802.3af IEEE802.3at |
| Switching Features | Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 21Gbps(non-traffic jam) DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb VLAND ID: 4096 MAC Address Table Size: 8K Jumbo Frame: 9.6KB |
| Network Media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs | Power, network, fiber PWR: Power
Orange: Link/ACT Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1 |
| Power Supply | Input voltage: 48V(max 52V) PoE output voltage: 48V Single PoE output power: 30W(port 1~8) Max budget: 240W Reverse connection: support |
| PoE Wiring | PoE af/at: 1/2(V+), 3/6(V-) |
| Environment | Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Industry Standards | ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV |
| Certification | CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014 |
| Mechanical information | Shell: Corrugated metal shell, IP40 grade level Dimension: 158*115*60mm Mounting method: Din-rail/Wall mounting Weight: 0.75Kg/0.9Kg(Net/Gross) |
| Warranty | 3 years, lifetime technical support |
Managed Function of Managed Fiber Switch
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE (Energy Efficient Ethernet) Management,
optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support Qos, transport classification Qos, Cos, bandwidth control
- (input/output direction), storm suppression , differentiated
services
- Support IEEE802.1q VLAN, VLAN port , based Mac VLAN, IP subnet
VLAN,
- Protocol VLAN,VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link
aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating,
IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL,
TACACS+,HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy
prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option
82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP,
IEEE802.1ab LLDP
- Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,
TFTP, QoS, ACL.
Application
Package
1. One product, one console cable, one user manual, and one
warranty card are inside one box.
2. Twenty boxes are in one carton.
FAQ
Q: Does this managed switch include the power supply?
A: No, no power adapter is included.
Q: Are you a manufacturer or trading company ?
A: We are a manufacturer in Shenzhen, China, focusing on fiber
optical equipments products.
We insist on R&D, with over 18 years of professional experience
in the area.
Q: What are the POE standards?
A: This is an industrial POE+ switch. Each network port can reach
30W when the power supply is 48VDC 5A.
Q: Is it a managed switch?
A: Yes, this is an L2 managed POE switch for industrial networks.
