1000mbps L2 Managed POE Switch With 2 Sfp Din-rail DC48V input

Ask Lasest Price
Brand Name :	Olycom
Model Number :	IM-FP288GW
Certification :	CE RoHS FCC ISO9001
Price :	Negotiable
Payment Terms :	T/T, PayPal
Supply Ability :	5000pcs/month
Delivery Time :	3~5 working days

Add to Cart

Product Details
Company Profile

10port Gigabit 10/100/1000mbps L2 Managed POE Switch With 2 Sfp Din-rail DC48V input

10port 10/100/1000mbps L2 Managed POE Switch

with 2 sfp fiber switch for outdoor

Key Features of Industrial poe fiber switch

Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
8 x 10/100/1000Mbps Auto-sensing RJ45 ports
2 x 1000Mbps SFP fiber port
6 KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
A store-and-forward switching mechanism

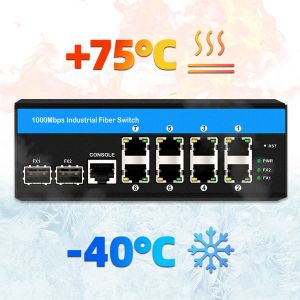

Operating environment temperature:-40 ° ~75 ° c

Specification of Industrial Full Gigabit Switch

Product Name	10/100/1000Mbps Managed Industrial POE Fiber Switch (2F+8TP)
Model No.	IM-FP288GW
Port	2 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard	IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID	4096
Jumbo Frame	9.6KB
MAC Address Table Size	8K
Switching features	Transmission mode:storage and forward System bandwidth:58Gbps (non-traffic jam)
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs	Power, network, fiber
Power supply	POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~8) (802.3at standards required special instructions)
Environment	Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing
Industry Standards	EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4
Safety	CE Mark ,commercial ; CE/LVD EN60950

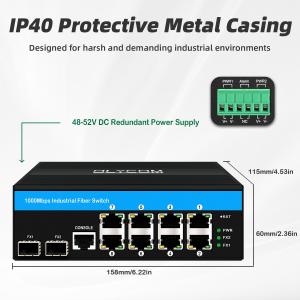

Mechanical information	Shell:Corrugated metal shell; Safety class:IP40; Dimension:158 x 114.8 x 60mm; Mounting method:Din-rail mounting
Warranty	Replacement within 1year; 3 years repairing

Application

Packing box of Din rail unmanaged switch:

Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.

The standard packing usually contains a main device, a warranty card and a user manual.

Packing box dimension for 1pc: 15.8*114.8*60cm

20pcs in a packing box of 55.5*40*41cm dimension.
