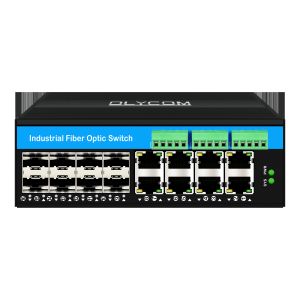

    Buy cheap Managed 16 Port Gigabit Poe Switch Din-rail Network Switch 8RJ45+8SFP With 4*RS485+2*CAN BUS from wholesalers

    Buy cheap Managed 16 Port Gigabit Poe Switch Din-rail Network Switch 8RJ45+8SFP With 4*RS485+2*CAN BUS from wholesalers
    • Buy cheap Managed 16 Port Gigabit Poe Switch Din-rail Network Switch 8RJ45+8SFP With 4*RS485+2*CAN BUS from wholesalers
    • Buy cheap Managed 16 Port Gigabit Poe Switch Din-rail Network Switch 8RJ45+8SFP With 4*RS485+2*CAN BUS from wholesalers
    • Buy cheap Managed 16 Port Gigabit Poe Switch Din-rail Network Switch 8RJ45+8SFP With 4*RS485+2*CAN BUS from wholesalers
    • Buy cheap Managed 16 Port Gigabit Poe Switch Din-rail Network Switch 8RJ45+8SFP With 4*RS485+2*CAN BUS from wholesalers

    Managed 16 Port Gigabit Poe Switch Din-rail Network Switch 8RJ45+8SFP With 4*RS485+2*CAN BUS

    Ask Lasest Price
    Brand Name : Olycom
    Model Number : IM-FP888GW-2C4D
    Certification : CE RoHS FCC ISO9001
    Price : Negotiable
    Payment Terms : T/T, PayPal
    Supply Ability : 3000pcs/month
    Delivery Time : 3~5 working days
    • Product Details
    • Company Profile

    Managed 16 Port Gigabit Poe Switch Din-rail Network Switch 8RJ45+8SFP With 4*RS485+2*CAN BUS

    Managed 16 Port Gigabit Poe Switch Din-rail Network Switch

    8RJ45+8SFP With 4*RS485+2*CAN BUS

    Key Features of managed 16 port poe switch


    • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
    • IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
    • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
    • 8 x 1000Mbps SFP fiber port
    • 2 x CAN Bus and 4 x RS485
    • 1 x Console port, L2+ managed
    • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
    • Support Auto MDI/MDIX
    • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
    • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
    • A store-and-forward switching mechanism
    • Operating environment temperature:-40 ° ~75 ° c

    Specificaiton of din-rail network switch

    Product Name10/100/1000Mbps Managed Industrial POE Fiber Switch with CAN Bus and RS485
    Model No.IM-FP888GW-2C4D
    Port

    8 x 1000Mpbs SFP port

    SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;

    8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

    2 x CAN Bus (Standard frame 11-bit ID, extended frame 29-bit ID,

    Support J1939, CANopen, DeviceNet and other protocols (firmware configuration required)

    4 x RS485 (support TCP/UDP protocol)

    1 x Console port (RJ45, Baud rate: 115200)

    StandardIEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
    VLAND ID4096
    Jumbo Frame9.6KB
    MAC Address Table Size8K
    Switching Features

    Transmission mode:storage and forward

    System bandwidth:58Gbps (non-traffic jam)

    DRAM size: 128M Flash size: 16M Packet buffer size: 4Mb

    Protocol


    IEEE 802.3(10Base-T)

    IEEE 802.3u(100Base-TX)

    IEEE 802.3ab(1000Base-TX)

    IEEE 802.3z (1000Base-X )

    IEEE 802.3af 15.4W(POE)

    IEEE 802.3at 30W(POE+)

    IEEE 802.1D (STP)

    IEEE 802.1w (RSTP)

    IEEE 802.1s (MSTP)

    ITU-T G.8032 ERPS Ring

    IEEE 802.1Q( VLAN)

    IEEE 802.3x (Flow control)

    IEEE 802.3ad (LACP)

    IEEE 802.1p (QoS)

    IEEE 802.1ab(LLDP)

    IEEE 802.1az(EEE)

    RFC 768 UDP

    RFC 793 TFTP

    RFC 791 IP

    RFC 792 ICMP

    RFC 2068 HTTP

    RFC 1112 IGMP v1

    RFC 2236 IGMP v2

    RFC 3376 IGMP v3

    L2+ Managed

    Supports IEEE802.1q VLAN, port VLAN, based Mac VLAN, IP subnet VLAN, protocol VLAN, VLAN conversion MVR.

    Supports IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimizes power consumption.

    Supports STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring (EPR).

    Supports QoS, transmission classification QoS, CoS, bandwidth control (input/output direction), storm suppression, differential services.

    Supports dynamic IEEE 802.3ad LACP link aggregation, static link aggregation.

    Supports IGMP/MLD detection V1/V2/V3, IGMP filtering/adjustment, IGMP query.

    Supports IGMP proxy report, MLD detection.

    Security: based on port and Mac IEEE802.1X, RADIUS, ACL.

    Support IEEE802.3az EEE (Energy Efficient Ethernet) TACACS+, HTTP/HTTPS, SSL/SSH v2.

    Support Cisco® like CLI, Web network management, SNMP v1/v2c/v3, Telnet.

    Support software upgrade via TFTP and HTTP, firmware redundancy to prevent upgrade failure.

    Support RMON, MIB II, mirroring, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP.

    Support IPV6, ICMP v6NTP/SNTP, TFTP, QOS, ACL.

    Support SerialCRT,CLI,Telnet,SNMP,HTTP,SSH/SSL

    Power Supply

    POE power supply input voltage: 48V (max 52V),

    Single PoE power supply output power: 30W (port 1~8)

    (802.3bt standards required special instructions)

    CAN Bus

    Standards: ISO 11898-2 (high-speed CAN)

    Communication rate: 10Kbps~1Mbps (configurable)

    Maximum number of nodes: 110 (default terminal resistance matching)

    Terminal resistance: 120Ω (optional terminal resistance built-in for each CAN)

    Isolation protection: Supports 2500V DC isolation (optional)

    Communication protocol: Supports CAN 2.0A/B, CAN FD

    Bus voltage range: -3V ~ +32V (anti-surge protection)

    RS485

    Standards: TIA/EIA-485-A

    Working mode: Full-duplex or half-duplex (configurable)

    Communication rate: 115200bps (configurable)

    Maximum number of nodes: 32 (default) or expandable to 256 (repeater required)

    Isolation protection: Supports 1500V DC isolation (optional)

    Bus voltage range: -7V ~ +12V (surge protection)

    RS485/CAN StabilityContinuous 72-hour full-load communication test under extreme temperature, communication bit error rate ≤1e-9
    LEDsPower, network, fiber, system
    EnvironmentWorking Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing
    Safety

    CE-EMC:

    EN 55032:2015+AC:2016+A1:2020+A11:2020

    EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021

    EN 61000-3-3:2013/A2:2021/AC:2022

    CE-LVD:

    EN IEC 62368-1:2020+A11:2020

    FCC:

    47 CFR FCC Part 15 Subpart B (Class B) ANSI C63.4:2014

    Mechanical information

    Shell:Corrugated metal shell; Safety class:IP40;

    Dimension:158 x 114.8 x 60mm;

    Mounting method:Din-rail mounting


    Accessories


    Industrial SFP Transceiver
    OSPL1E06D-85100BASE-FX (850nm)
    OSPL1E06D100BASE-FX
    OSPL1E20D100BASE-LX
    OSPL1E40D100BASE-EX
    OSBL1E20D-35100BASE-BX-U (TX 1310 RX1550)
    OSBL1E20D-53100BASE-BX-D (TX 1550 RX1310)
    OSPL1G05D1000BASE-SX
    OSPL1G06D1000BASE-SX (1310nm)
    OSPL1G20D1000BASE-LX
    OSPL1G40D1000BASE-EX
    OSBL1G20D-351000BASE-BX-U (TX 1310 RX1550)
    OSBL1G20D-531000BASE-BX-D (TX 1550 RX1310)
    Industrial Power Adapter Din-rail
    IM-DAC220/DC48V2.5AAC220V to DC48V2.5A, -40～80℃
    IM-DAC220/DC48V5AAC220V to DC48V5A, -40～80℃
    IM-DAC220/DC48V10AAC220V to DC48V10A, -40～80℃

    FAQ


    1.Are you a manufacturer?
    Yes, we have our production line and R&D team.
    Please visit us via below VR link to see our office and production area.
    https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

    2.What is the leadtime if I order?
    After receiving the payment, we start production.
    If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
    If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.

    3. How will you ship my order?
    We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
    It is fine to ship purchased items via customer’s shipping account or forwarder.
    It takes 3~5 calendar days to arrive at local customs for clearance.

    4. What is MoQ?
    1 Pc/Pair.
    For many models, we have stock, it is easy to send samples for your testing.

    5. Can I have a discount?
    Yes and it is usually based on quantity and after sample testing.
