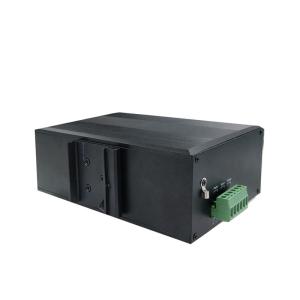

    1000Mbps Industrial Managed POE Switch 4SFP Fiber Ports 4UTP Ports With Console Port

    Ask Lasest Price
    Brand Name : OLYCOM
    Model Number : IM-FP444GW
    Certification : CE, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 8000pcs per month
    Delivery Time : 3-5 workdays
    • Product Details
    • Company Profile

    1000Mbps Industrial Managed POE Switch 4SFP Fiber Ports 4UTP Ports With Console Port

    Switch Poe 8 Port Gigabit Ethernet 4 SFP Fiber Ports + 4 UTP Ports With Console Port


    Introduction


    IM-FP444GW series is the 10/100/1000 Mbps Switch Poe 8 Port , comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.


    Key Features


    1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.

    2. IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports

    3. 4 x 10/100/1000Mbps Auto-sensing RJ45 ports

    4. 4 x 1000Mbps SFP fiber port
    5. 4KV Ethernet surge protection, adapt to a harsh outdoor environment
    6. Support Auto MDI/MDIX
    7. Flow control mode: full duplex with IEEE 802.3x standard,half-duplex with Back pressure standard
    8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
    9. A store-and-forward switching mechanism
    10. Operating environment temperature:-40 ° ~85 ° c
    11. Support cable diagnosis and can locate the fault point
    12. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
    13. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
    14. Support Qos, transport classification Qos, Cos, bandwidth control
    15. (input/output direction), storm suppression ,differentiated services
    16. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN,
    17. Protocol VLAN,VLAN convert, MVR
    18. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
    19. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
    20. Support IGMP agent report, MLD snooping
    21. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
    22. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
    23. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
    24. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
    25. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
    26. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
    POE part
    ● The Ethernet port supports the standard IEEE802.3af power supply. (Please specify the AT standard)
    ● Support dual power input power supply voltage: 48~52VDC, power output power is determined by POE load.
    ● Wiring method: The default wiring mode is 12, 36 (you can choose custom 45+, 78- wiring mode)
    ● You can select one of the electrical ports to support 60W power supply output (special instructions are required when ordering)
    Make sure that the powered devices connected to the switch's POE port are compliant with the IEEE802.3af/at standard.

    Spectification


    Product NameSwitch Poe 8 Port (4F+4TP)
    Model No.IM-FP444GW
    Port

    4 x 1000Mpbs SFP port

    SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;

    4 x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

    StandardIEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
    VLAND ID4096
    Jumbo Frame9.6KB
    MAC Address Table Size8K
    Switching features

    Transmission mode:storage and forward

    System bandwidth:40Gbps (non-traffic jam)

    Network media

    10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

    100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

    SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

    LEDsPower, network, fiber
    Power supply

    POE power supply input voltage: 48V (max 52V),

    Single PoE power supply output power: 15.4W (port 1~4)

    (802.3at standards required special instructions)

    EnvironmentWorking Temp:-40°～ 85°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing
    Industry Standards

    EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

    EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4

    SafetyCE Mark ,commercial ; CE/LVD EN60950
    Mechanical information

    Shell:Corrugated metal shell; Safety class:IP40;

    Dimension:158 x 114.8 x 60mm;

    Mounting method:Din-rail mounting

    WarrantyReplacement within 1year; 5 years repairing

    Application
